The instrument in a fire lookout measures one thing about a fire: which way.
The Osborne Fire Finder is a map on a steel disc, centered on its tower, with a ring of degrees around the rim and two sliding sights. The lookout sees smoke, moves the sights until the hair in the far one rests on the base of it, and reads the number: an azimuth, in degrees and minutes. Then the lookout picks up the radio and says it.
On its own, that is a line, not a place. The smoke is somewhere along it, two miles out or twenty. The rear sight gives an angle up or down, the finder carries a tape for estimating distance, and a lookout who knows the country can turn those into a ridge the smoke seems to sit on. That is a judgment, and often a good one. The line is the only thing the instrument knows for sure.
Dispatch offices kept a map with a string anchored at each tower. When a tower called a shot, the dispatcher pulled the string along that bearing. When a second tower called the same smoke, the strings crossed, and the judgment became a point. A third string made a small triangle around it.
William Osborne built the finder in his home workshop over the winter of 1910 to 1911. Two years on, he set up the first central fire-dispatching system. The second invention is the other half of the first. He made a device whose answer is a line, then made the room where the lines are crossed.

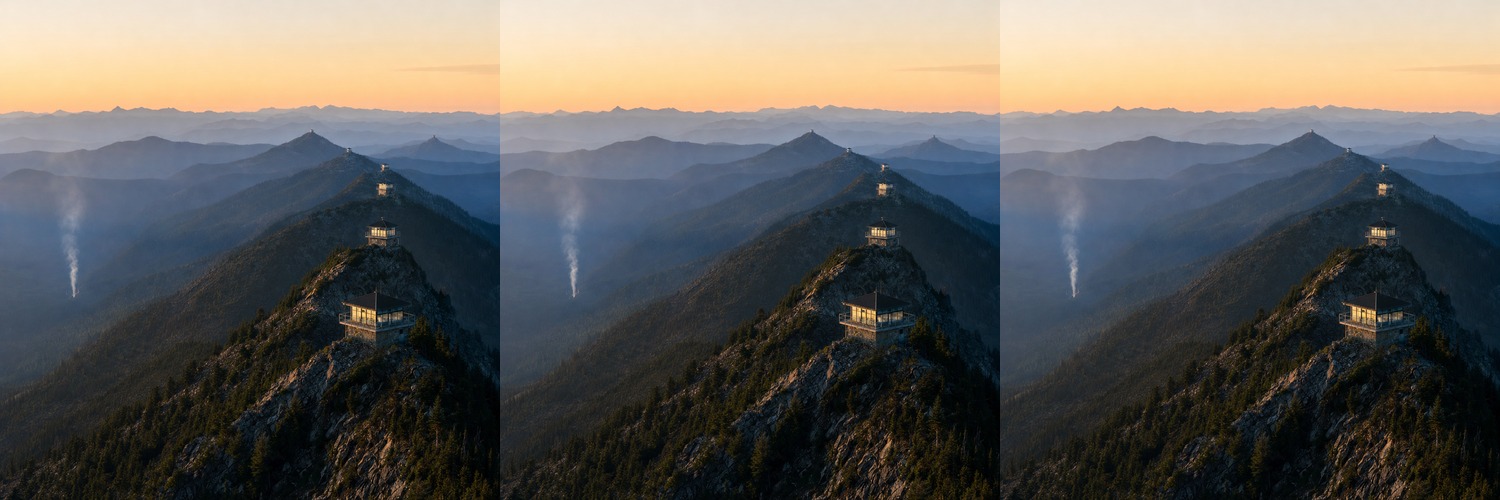

Most of the towers are empty now. The ones still staffed hold one person on a summit for a season. They say a number into a radio, and wait for a stranger on another peak to say theirs.
